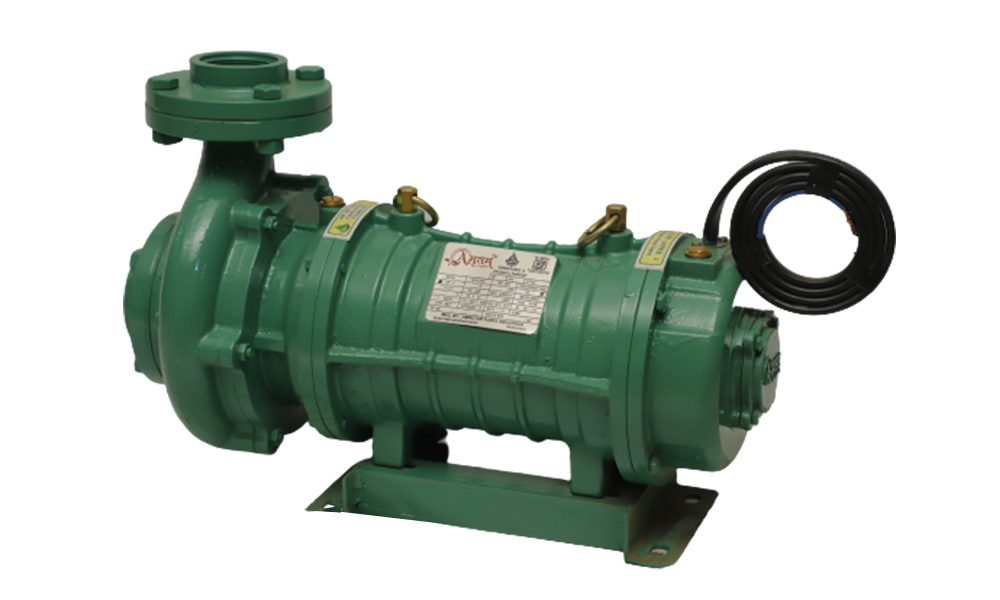

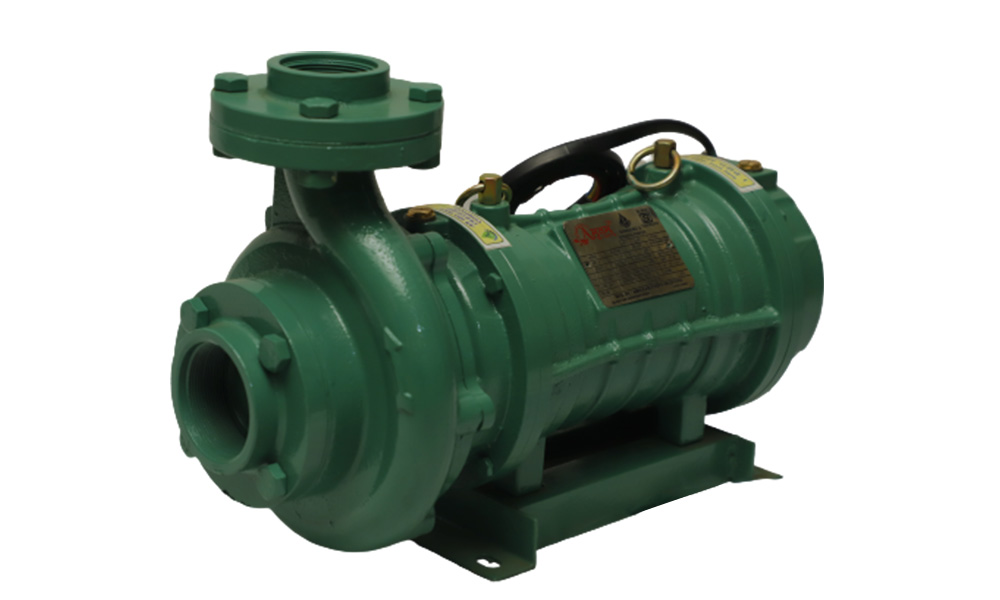

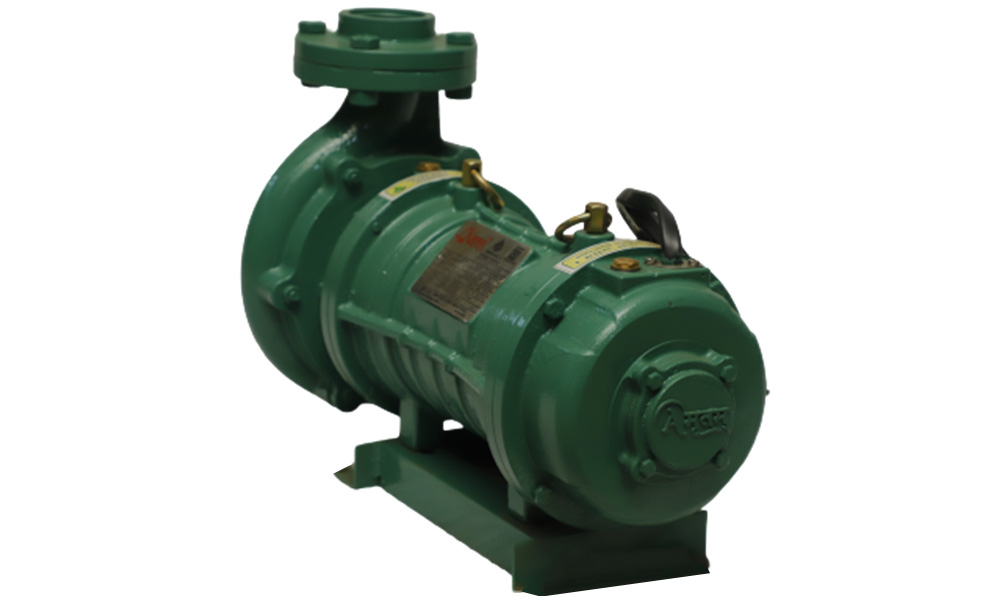

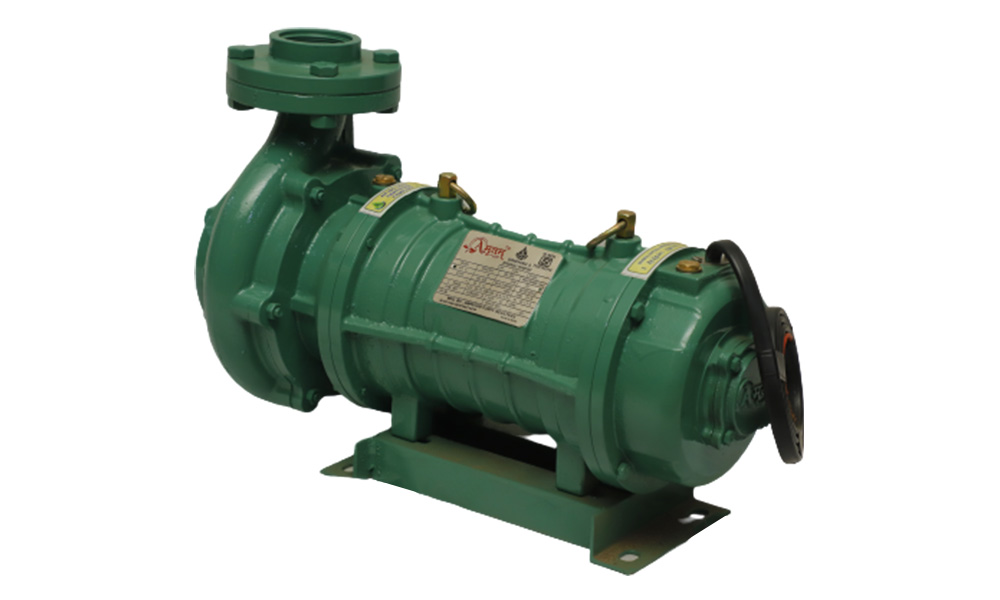

Horizontal Openwell Submersible Monoset

Star marked energy efficient models certified by bureau of energy efficiency (BEE).

Noise free operation.

Durable and sand resistive

High quality insulated winding wire for longer life.

Fully powder coated CI components for better corrosion prevention.

Dynamically balanced rotating parts ensures minimum vibrations and longer life.

Designed for wide voltage fluctuations.

No Suction and priming problem.

Esily rewindable.

Specifications
 Power Range : Single Phase : 0.37 kW - 3.7 kW (0.50 HP - 5.00 HP)
    Three Phase : 0.75 kW - 11.0 kW (1.00 HP - 15.00 HP)
 Speed : 2900 RPM, 50Hz, AC Supply
 Version : Single Phase 160 - 240V, Three Phase 200 - 400V
 Maximum Total Head : Single Phase - 37 Meter, Three Phase - 50 Meter
 Discharge Range (LPM) : Single Phase : (35 - 909 LPM), Three Phase : (25 - 2105 LPM)
 Stage : 1 Stage
 Normal Outlet Size : 25, 40, 50, 65, 75, 100 mm
 Degree of Protection : IP 68
 Direction of Rotation : Single Phase - Counter clockwise from driving end
    Three Phase - Electrically Reversible - 3ph
 Type of Duty : S1(Continuous)
 Method of starting : 1 Phase - Capacitor Starting Capacitor Running (CSCR) up to 3.7 kW
    3 Phase – Direct Online (D.O.L) up to 5.5 kW, Star Delta (SD) up to 11.0 kW
 Maximum starts per hour : 10 times

Application : Domestic, Rural Water, Irrigation, Sprinkler system, Gargens, Pressure booting units, fire fighting system
