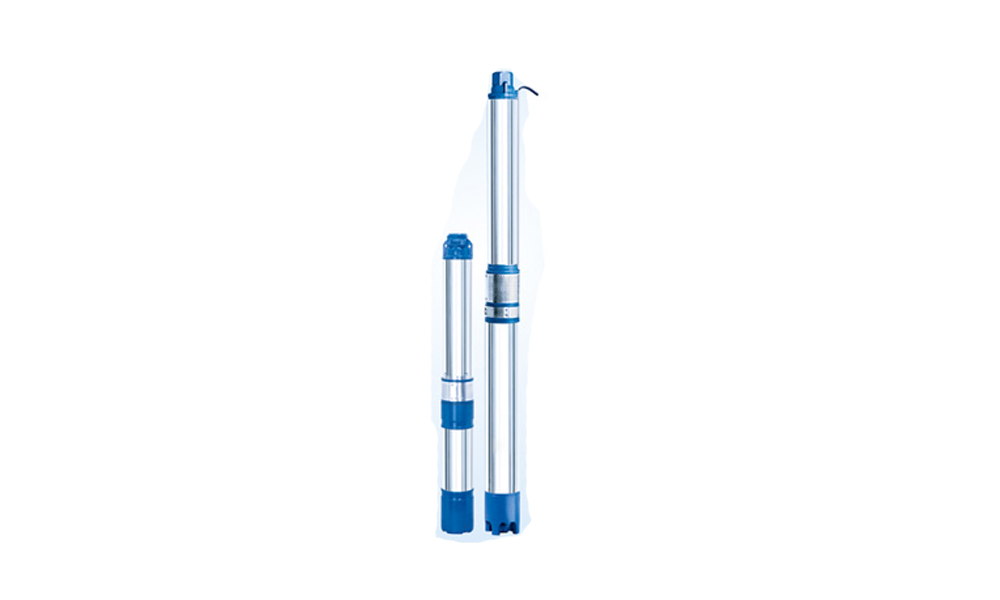

V-4 Submersible Borewell Pump

  • Home
  • V-4 Submersible Borewell Pump




V4 Oil / Water Lubricated Pumpset

Light weight & easy to install

Noise free operation.

Radial & Mixed flow impeller design for variable conditions.

High quality insulated winding wire for longer life.

Impellers & diffusers of high quality engineering polymer (Glass filled).

Dynamically balanced roating parts ensures minimum vibrations and longer life.

Designed for wide voltage fluctuations.

Better efficiency and consistent performance ensures low operation cost.

Esily rewindable.

Fully SS pumpsets are available.

Specifications

 Power Range  : Single Phase 0.37 kW - 3.7 kW (0.5 HP - 5.0 HP)
     Three Phase 0.75 kW - 7.5 kW (1.0 HP - 10.0 HP)
 Speed :  : 2850 RPM, 50Hz, AC Supply
 Version  : Single Phase 160 - 240V, Three Phase 200 - 415V
 Maximum Total Head  : 360 Metre
 Discharge Range (LPM)  : 8 - 524 LPM
 Stage  : Up to 60 stage
 Normal Outlet Size  : 25, 32, 38, 50 & 65 mm
 Degree of Protection  : IP 68
 Suitable Bore Diameter  : 100 mm
 Maximum Outer Diameter  : 98 mm
 Direction of Rotation  : Single Phase - Counter clockwise from driving end
     Three Phase - Electrically Reversible - 3ph
 Minimum Cooling Flow Along The Motor  : 0.15 m/sec
 Type of Duty  : S1(Continuous)
 Method of starting  : 1 Phase - Capacitor Starting Capacitor Running (CSCR)
                      For Water Lubricated
     1 Phase - Capacitor Starting Running (CSR)
                      For Oil Lubricated
     3 Phase - Direct Online (D.O.L) / Star Delta(SD)
 Maximum starts per hour  : 20 times



Application : Domestic, Rural Water Supply, Irrigation, Sprinkler Systems, Gardens, Pressure Boosting Unit and Fire Fighting Sysytem.
