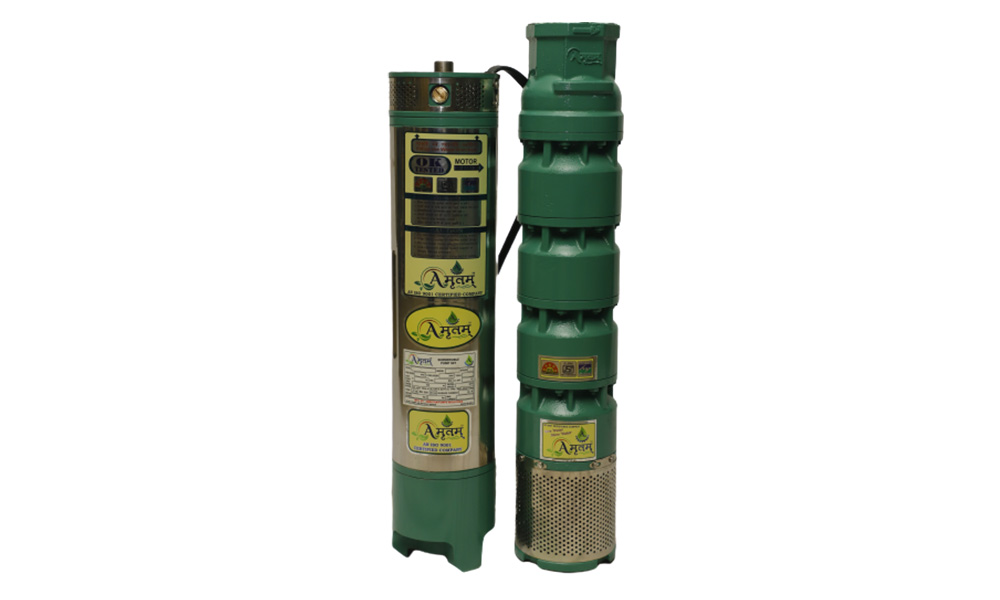

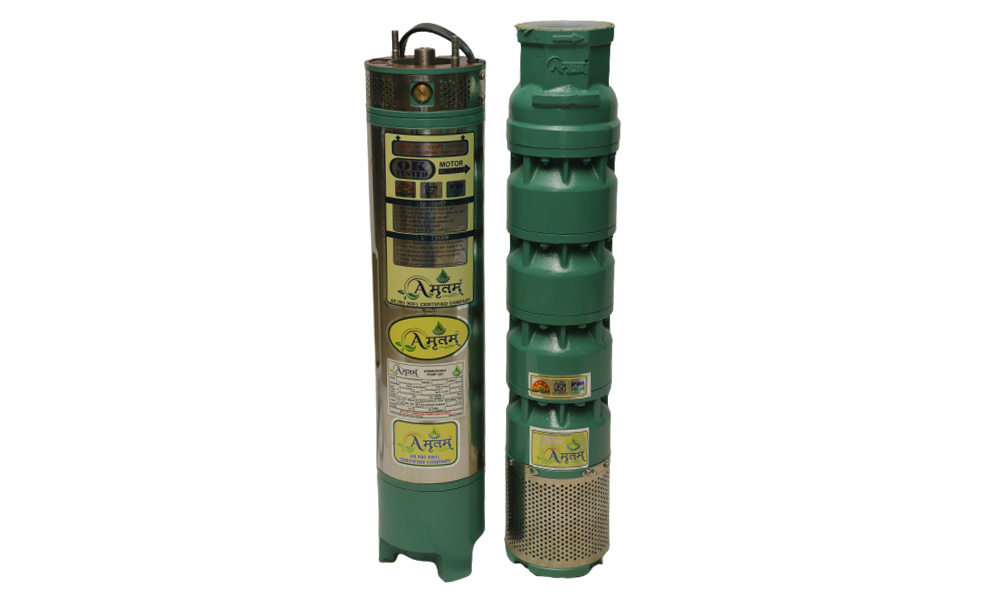

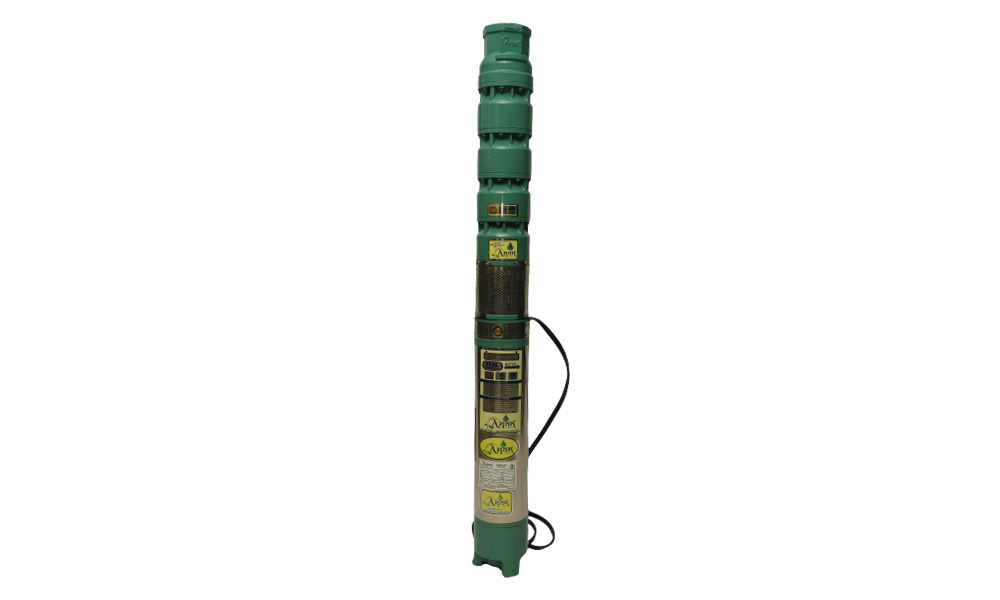

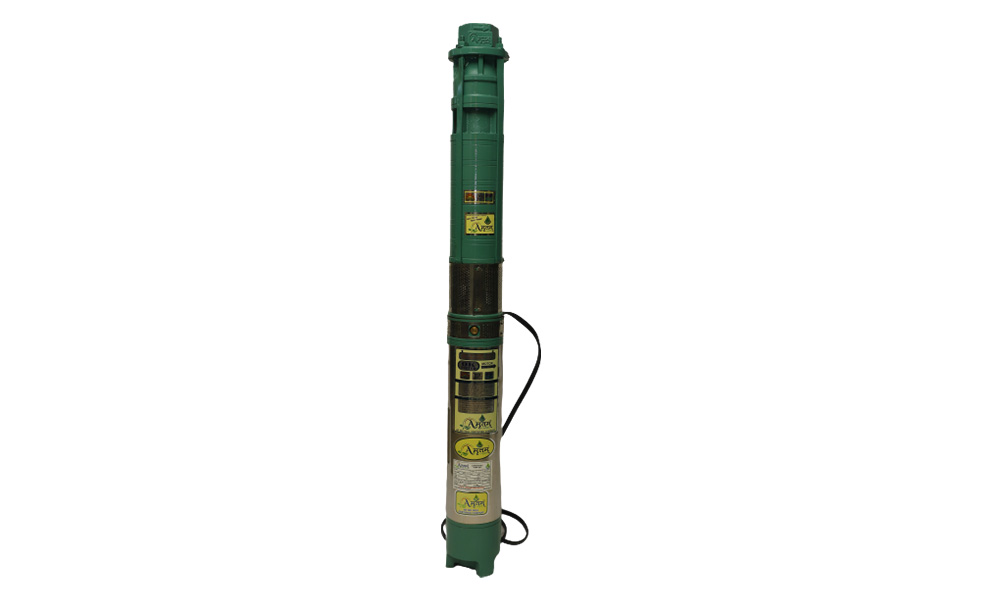

V-6 Submersible Borewell Pump

  • Home
  • V-6 Submersible Borewell Pump

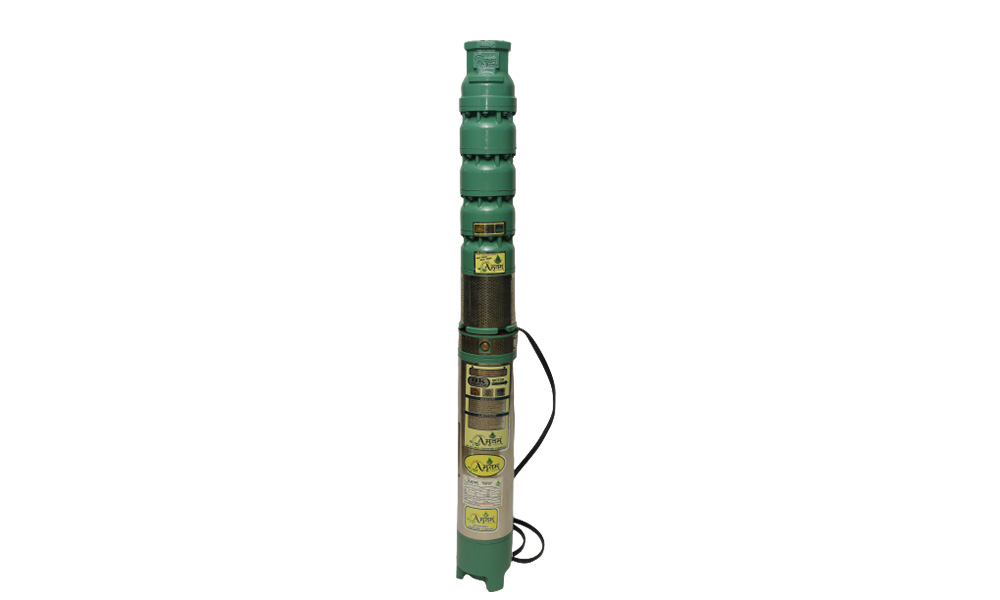

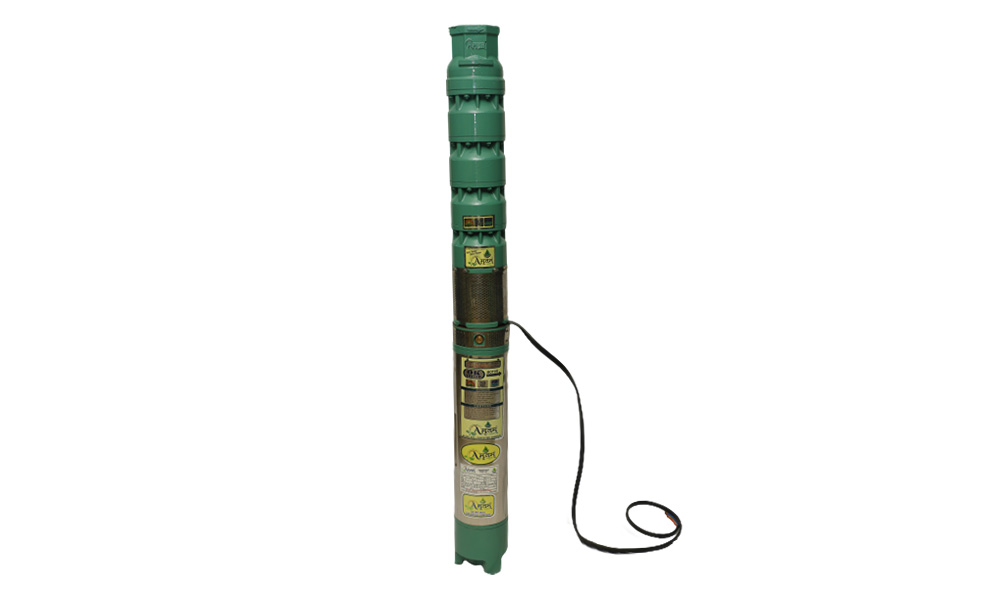

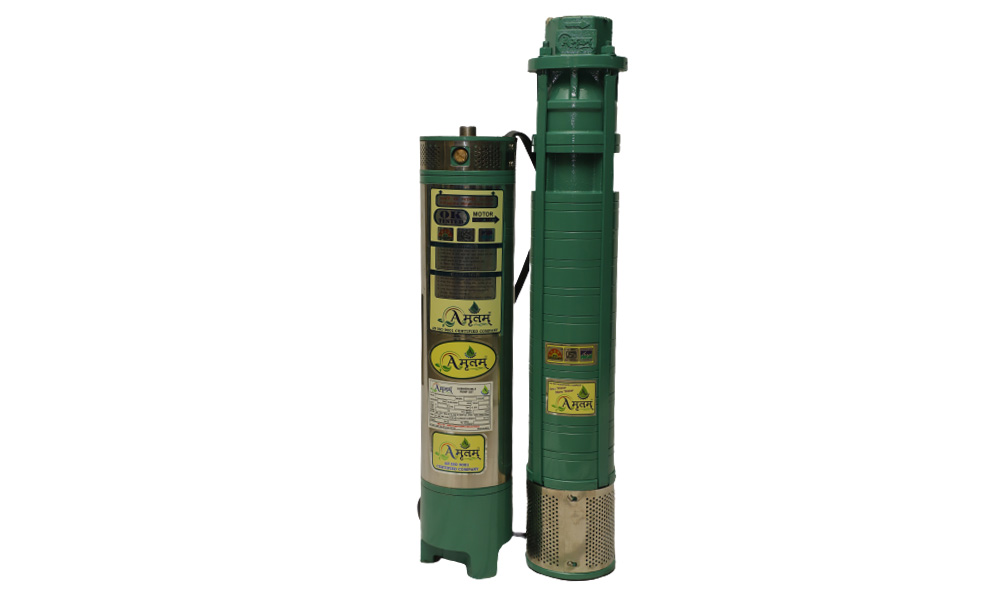

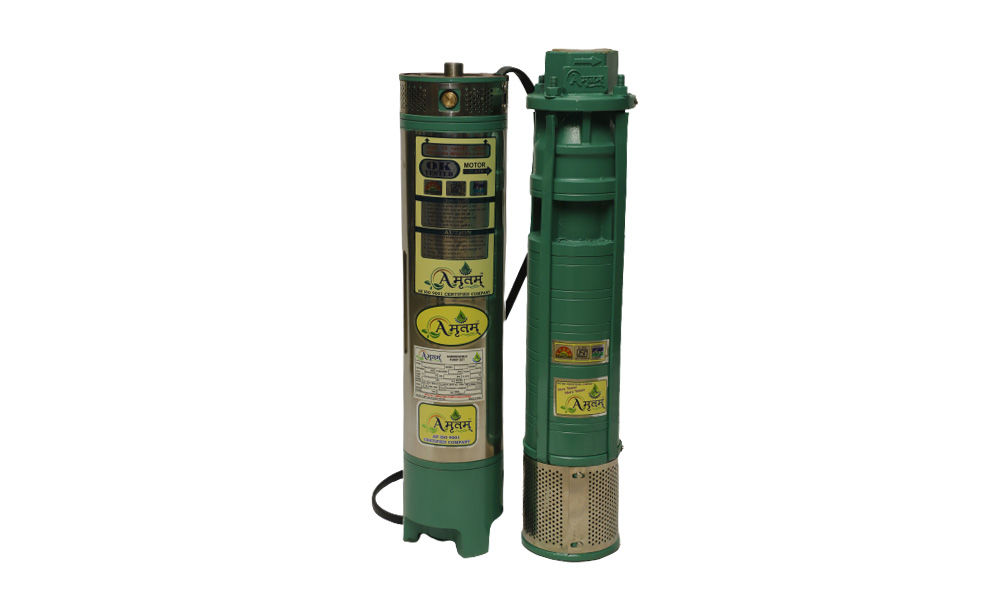

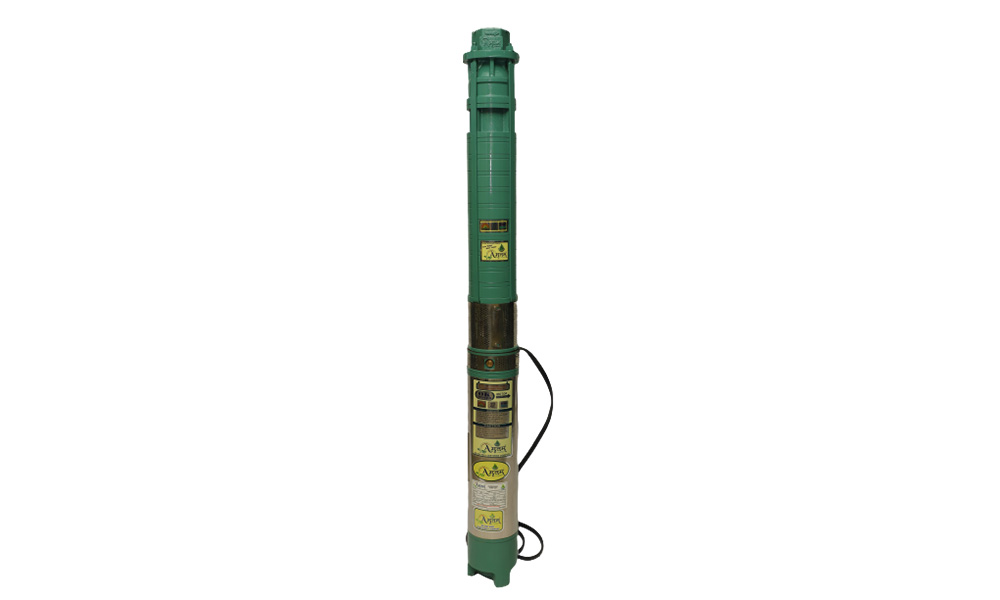

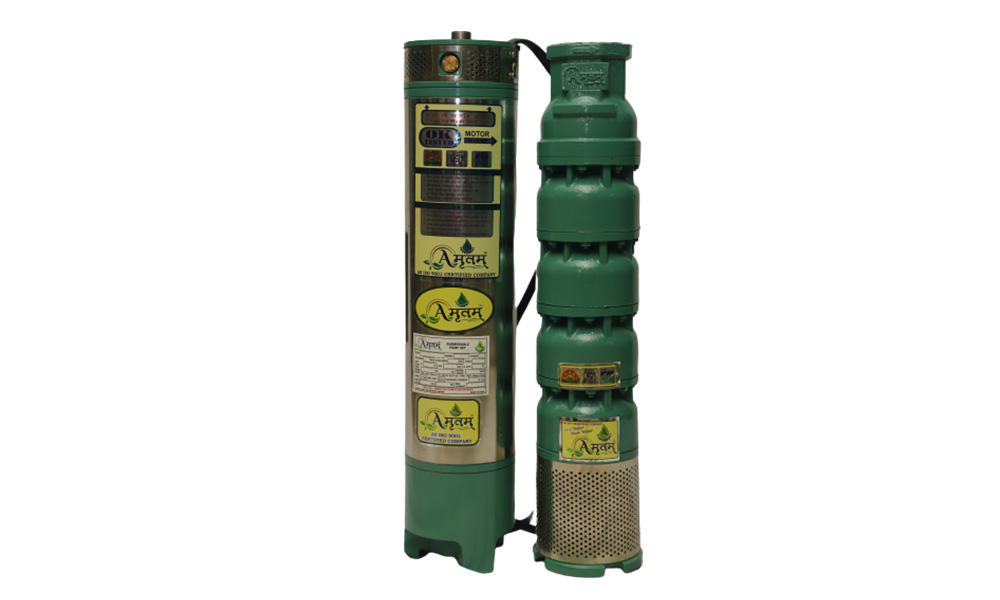

V6 Water Lubricated Pumpset

Star marked energy efficient models certified by bereau of energy efficiency (BEE).

Radial & Mixed flow impeller design for variable conditions.

Special LTB-4 & Nitrile rubber bearing bushes for high wear & tear resistance and longer life.

Stainless steel stator shell to prevent rust formation.

High quality water - resistant Poly insulated winding wire for longer life.

Specially designed thrust bearing .

Dynamically balanced rotating parts ensures minimum vibrations and longer life

Designed for wide voltage fluctuations & easily rewindable.

Better efficiency and consistent performance ensures low operation cost.

50 Feet Pumpsets available in Cl Stage Casing With SS Clading & SS Impellers.

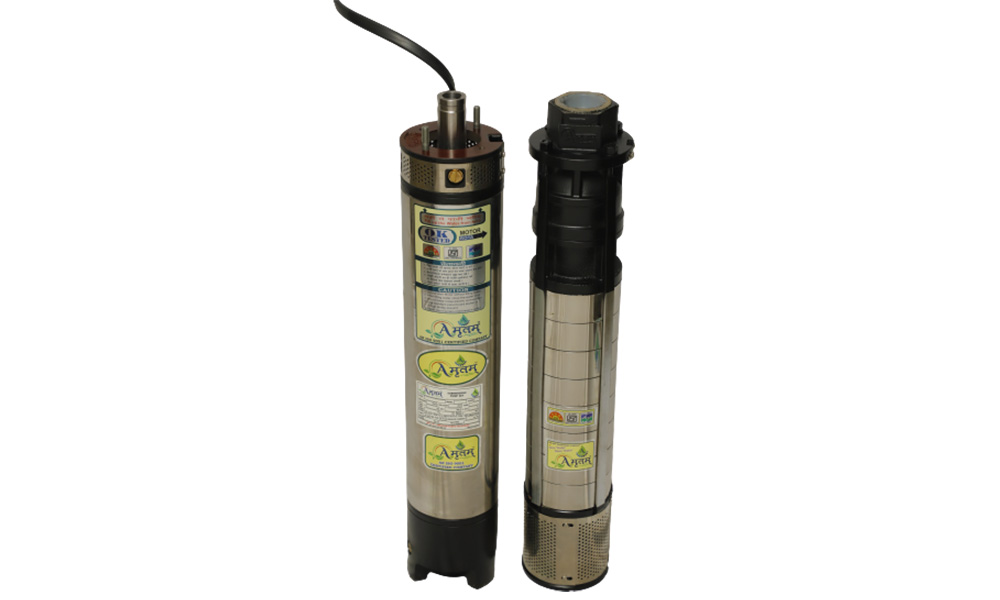

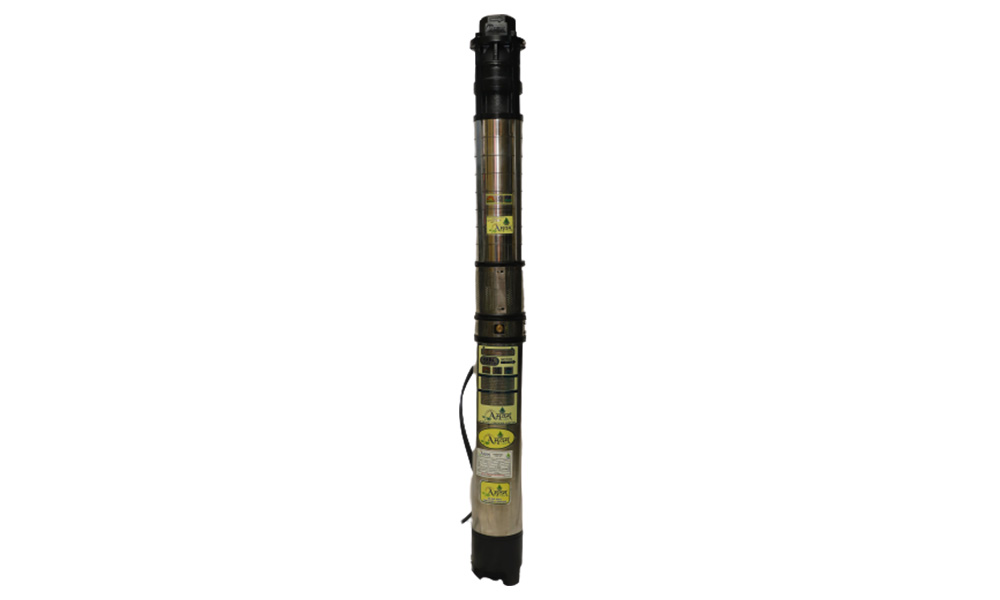

Fully SS pumpsets are available.

Specifications :

Power Range  : Single Phase : 2.2kW - 3.7 kW (3.0 HP - 5.0 HP)
     Three Phase : 2.2kW - 26.0 kW (3.0 HP - 36.0 HP)
Speed  : 2900 RPM, 50Hz, AC Supply
Version  : Single Phase 160 - 240V, Three Phase 200 - 415V
Maximum Total Head  : 360 Metre
Discharge Range (LPM)  : 20 - 1550 LPM
Maximun Stage  : Up to 30 stage
Normal Outlet Size  : 50, 65, 80 & 100 mm
Degree of Protection  : IP 68
Suitable Bore Diameter  : 150 mm
Maximum Outer Diameter  : 146 mm
Direction of Rotation  : Single Phase - Counter clockwise from driving end
     Three phase - Electrically Reversible - 3ph
Minimum Cooling Flow
        Along The Motor
 : 0.15 m/sec
Type of Duty  : S1(Continuous)
Method of starting  : 1 Phase - Capacitor Starting Capacitor Running (CSCR) up to 3.7 kW
     3 Phase - Direct online (D.O.L) up to 5.5 kW, Star Delta(SD) up to 26 kW
Maximum starts per hour  : 20 times

APPLICATION :

Agriculture

 Domestic

 Irrigation

 Gardens

 Industrial

 Rural Water Supply

 Ponds

 fire fighting system

Pressure Boosting Units
